The idea of piling stones over each other so they stretch further and further out over a deep cavernous opening, without the use of fasteners or cement or any support from below seems a bit crazy. Each row of stones inches its way over the opening extending upward into the middle of the chamber. It seems like a precarious gamble against the laws of physics and common sense. It's more like a magic trick, one that one shouldn't try at home (or abroad). The concept of the 'cantilever' is a bit of a 'can't believe her' sometimes. But anyway we venture on... out over the abyss, boldly going where no stones have gone before. By the end of next week a dome eight and a half feet in diameter consisting of 5 tons of dry laid stone will hang gracefully, twelve feet in the air over the below-ground circular chamber that we completed just last week.

Friday, August 30, 2013

Arch Relief

It was decided the underground chamber we are building should have an arch as well as lintels

This was partly for looks and partly as a kind of a nod to the French tradition of building relief arches in their 'cabanes en pierre sèche' in combination with lintel stones. The difference is these arches were usually built over the lintel openings and were filled in completely with stones. The arch directed the thrust of the weight of the dome roof away from the lintel.

© Philippe Hurtebize

I liked making this arch. I used local limestone and sandstone. I prefer to chisel the voussior shapes rather than saw them. The keystone was a challenge as I busted three before I was able to get this one into shape. It's  made of a very difficult conglomerate stone which I found in the pile of bedrock extracted from the hole. I was expecting it to bust into a dozen jagged pieces like the other limestone but it never showed any signs of cracking.

The final keystone fitting is always slow going, sliding it in, taking it out, chipping away the sides carefully and sliding it in again. The arch stones should all tighten up just before the moment keystone touches the form.

While I built the arch Norman had gone round the chamber adding the final courses of stones up to the top of lintel height. All the higher rows will begin to be corbelled into the centre of the circle creating a dome shape. Hopefully.  No form will be used to create the dome.

A big furry visitor came just as I finished the arch.

He agreed to sit in the arch opening for a spontaneous photo op.

Thursday, August 29, 2013

The three lintels go on

The big advantage to building below ground is you don't have to lift the heavy stone lintels up above the door.

You just roll them over the boards and over the opening.

Now Number 2 lintel drops in to place.

Mossy number 3 is rolled into place the next day


Voila !

Tomorrow the arch.

Wednesday, August 28, 2013

Warning? - Getting Narrower

Britain has a huge network of very small single track roads. This one in Lancashire we drove up yesterday warned us that the already narrow road we were on was getting 'narrow'. When you approach a sign like this, what are you supposed to do, leave your car behind and go by bicycle?.

Speaking of 'nairrow'... Here's a clever visual quote/pun, hand-carved in stone by a special friend of mine.

Tuesday, August 27, 2013

Andy Who When and Where?

Over there, past Lancashire over the fell and north towards Yorkshire, not far from where we are building, is Bentham

And this small British town has an Andy Goldsworthy connection.  It turns out he spent his early days there in Yorkshire and says he learned how to 'gap' walls as a youth. It doesn't seem like a very inspiring place actually. Am I  allowed to say that? hmm.

However not far from Bentham is this amazing rock. Its called the 'Great Stone of Fourstones' and it's big! And it's even bigger when you climb to the top. No one knows the story of who carved the steps or when. Who knows, it may have been Andy.

Monday, August 26, 2013

Inside and outside the circle

Here's a question, partly related to my thoughts about using string to define a circle.

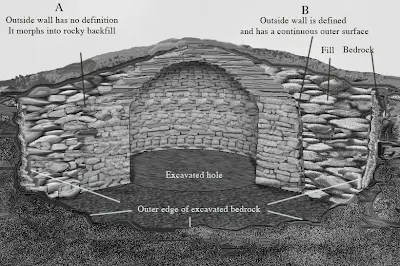

In the case of building the circular structure shown in this photo (which I've been documenting for the last week or so) is anything improved structurally by actually having a 'defined' outside cylindrical surface,with stone material separately back-filled after?
 Example B


Or, might it be just as structural, or perhaps better, to 'morph' the outer stonework into the same back-fill material (leaving the outside shaggy) so that, in effect, it has no outside dimensions at all?   Example A

Sunday, August 25, 2013

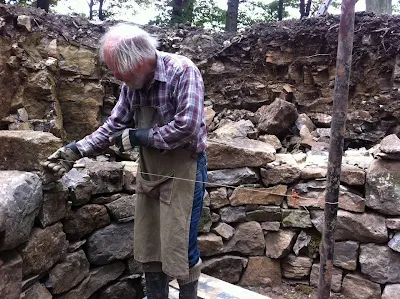

Norman measures to see if we are keeping the inside dimensions of our underground dry stone chamber in a correct circular orientation.
